Generator Gas Hoses  Made-In-the-USA

 •  Rated up to 1/2 PSI for Natural Gas OR Low Pressure Propane.
 •  Choose either a Sturgis-brand strip wound OR a stainless steel overbraid flexible hose.
       These hose remain flexible in cold weather, unlike most other hoses.
 •  Strip wound hose absorbs the vibration from the generator and is not prone to cracking like metal connection tubing.
 •  The stainless steel overbraid gas hose is almost squirrel and rodent proof.
 •  M.B.Sturgis ANSI Z21.54 coupling hose connectors are engineered and manufactured to the highest specifications in the industry,         They use only UL-certified steel in the inner core and domestic CA360 brass on the milled-end fittings, exceeding  all CSA                       connector certifications.

 •  Certification: ANSI Z21.54 Used for Natural & LP Gas
 •  Temperature Range: -40ºF to 200ºF (-40ºC to 93ºC),  Pressure Rating: 1/2 PSI MAX
 •  All assemblies are 100% tested with pure nitrogen.
 •  These hoses and parts are not interchangeable with Snap Tite couplers. They ARE compatible with the popular Hansen & Sturgis-         brand Couple-Safe couplers and the Gas Flo brand fittings.
 •  These are the absolute highest quality and safest generator connector hoses manufactured anywhere.

Shipping is free within the 48 contiguous U.S. States.

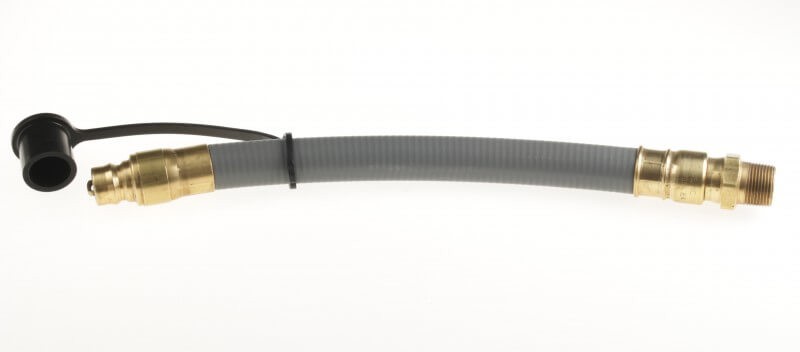

  100GH585   -  3/4" ID Generator Hose for Natural Gas or LP

  100GH585

100GH585 - Natural Gas or Low Pressure Propane Hose  3/4" ID
with 3/4" Male NPT swivel fitting x 3/4" Male Quick Connect Plug.


This NATURAL GAS  hose can also be used with LOW PRESSURE PROPANE.

1/2 PSI MAX. Requires an Optional Female Socket.

Free Shipping within the 48 contiguous U.S. States.
Custom-Made lengths available upon request. Call 713.222.0077



$39.95





  100GH607   - 3/4" ID Generator Hose for Natural Gas or LP with Stainless Steel Overbraid     ON SALE ITEM

  100GH607

100GH607 - Natural Gas or LP Stainless Steel Overbraid Hose 3/4" ID

with 3/4" Male NPT swivel fitting x 3/4" Male Quick Connect Plug.



This NATURAL GAS hose can also be used with LOW PRESSURE PROPANE.

1/2 PSI MAX. Requires an Optional Female Socket below.
Stainless Steel overbraid makes this gas hose almost squirrel-proof.

Free Shipping within the 48 contiguous U.S. States.
Custom-Made lengths available upon request. Call 713.222.0077


HOSES ON SALE


16in / 2ft / 6ft / 10ft / 15ft / 20ft / 25ft / 30ft

16in Hose (Retail Price $ 80.00 / on SALE for $ 40.00)
2ft  Hose (Retail Price $ 100.00 / on SALE for $ 50.00)
6ft  Hose (Retail Price $ 300.00 / on SALE for $ 150.00)
10ft Hose (Retail Price $ 400.00 / on SALE for $ 200.00)

15ft Hose (Retail Price $ 500.00 / on SALE for $ 250.00)
20ft Hose (Retail Price $ 600.00 / on SALE for $ 300.00)
25ft Hose (Retail Price $ 700.00 / on SALE for $ 350.00)
30ft Hose (Retail Price $ 800.00 / on SALE for $ 400.00)



$40.00





  104GC089    - 3/4" Female NPT x 3/4" ID QD Female Socket

  104GC089

104GC089 - 3/4" Female NPT x  3/4" ID Quick Disconnect Female Socket.



1/2 PSI MAX. For NATURAL GAS or LOW PRESSURE PROPANE.

Free Shipping within the 48 contiguous U.S. States.

$99.95





  104GC090   - 3/4" Female NPT x 3/4" ID QD Female Socket with Ball Valve

  104GC090

104GC089 - 3/4" Female NPT x 3/4" ID QD Female Socket with Ball Valve.



1/2 PSI MAX. For NATURAL GAS or LOW PRESSURE PROPANE.

Free Shipping within the 48 contiguous U.S. States.

$119.95





  401GC606   - 3/4" Female NPT x 3/4" ID QD Male Plug

  401GC606

401GC606 - 3/4" Female NPT x  3/4" ID Quick Disconnect Male Plug.



1/2 PSI MAX. For NATURAL GAS or LOW PRESSURE PROPANE.

Free Shipping within the 48 contiguous U.S. States.

$59.95





  100GH518   -  3/4" ID Generator Hose, 3/4" Male NPT x 3/4" Male NPT for Natural Gas or LP

  100GH518

100GH518 - Natural Gas or Low Pressure Propane Hose  3/4" ID

with 3/4" Male NPT swivel fitting x 3/4" Male NPT swivel fitting.


This NATURAL GAS  hose can also be used with LOW PRESSURE PROPANE.

1/2 PSI MAX. Requires an Optional Female Socket.

Free Shipping within the 48 contiguous U.S. States.
Custom-Made lengths available upon request. Call 713.222.0077





  100GH612   - 3/4" ID Generator Hose, 3/4" Male NPT x 3/4" Male NPT for Natural Gas or LP with Stainless Steel Overbraid     ON SALE ITEM

  100GH612

100GH612 - Natural Gas or LP Stainless Steel Overbraid Hose 3/4" ID

with 3/4" Male NPT swivel fitting x 3/4" Male NPT swivel fitting.



This NATURAL GAS hose can also be used with LOW PRESSURE PROPANE.

1/2 PSI MAX. Requires an Optional Female Socket below.
Stainless Steel overbraid makes this gas hose almost squirrel-proof.

Free Shipping within the 48 contiguous U.S. States.
Custom-Made lengths available upon request. Call 713.222.0077


HOSES ON SALE


10ft / 15ft / 20ft / 25ft / 30ft

10ft Hose (Retail Price $ 400.00 / on SALE for $ 200.00)
15ft Hose (Retail Price $ 500.00 / on SALE for $ 250.00)
20ft Hose (Retail Price $ 600.00 / on SALE for $ 300.00)
25ft Hose (Retail Price $ 700.00 / on SALE for $ 350.00)
30ft Hose (Retail Price $ 800.00 / on SALE for $ 400.00)



$200.00





  100GH519   - 1" ID Natural Gas or Low Pressure Propane Generator Hose

  100GH519

1" ID x Custom Length, with 1" Male NPT fixed x 1" Male NPT swivel fittings.

1/2 PSI MAX. Hose can be used with Natural gas or Low Pressure Propane.


This hose will remain flexible in cold weather.  MADE IN USA

Free shipping to the 48 contiguous U.S. States.

Custom made lengths available by request. Minimum hose length is 24".


For Pricing, call at 713.222.0077

Or email at info@tejassmokers.com





  100GH622   - 1" ID Natural Gas or Low Pressure Propane with Stainless Steel Overbraid Generator Hose

  100GH622

1" ID x Custom Length, with 1" Male NPT fixed x 1" Male NPT swivel fittings,
with Stainless Steel Overbraid and high-temperature poly-jacketing.


1/2 PSI MAX. Hose can be used with Natural gas or Low Pressure Propane.


This hose will remain flexible in cold weather.  MADE IN USA

Free shipping to the 48 contiguous U.S. States

Custom made lengths available by request. Minimum hose length is 24".


For Pricing, call at 713.222.0077

Or email at info@tejassmokers.com





  100GH520   - 1 1/4" ID Natural Gas or Low Pressure Propane Generator Hose

  100GH520

1 1/4" ID x Custom Length, with 1 1/4" MNPT fixed x 1 1/4" MNPT swivel fittings.

1/2 PSI MAX. Hose can be used with Natural gas or Low Pressure Propane.


This hose will remain flexible in cold weather.  MADE IN USA

Free shipping to the 48 contiguous U.S. States.

Custom made lengths available by request. Minimum hose length is 24".


For Pricing, call at 713.222.0077

Or email at info@tejassmokers.com





  100GH623   - 1 1/4" ID Natural Gas or Low Pressure Propane with Stainless Steel Overbraid Generator Hose

  100GH623

1 1/4" ID x Custom Length, with 1 1/4" MNPT fixed x 1 1/4" MNPT swivel fittings,
with Stainless Steel Overbraid and high-temperature poly-jacketing.


1/2 PSI MAX. Hose can be used with Natural gas or Low Pressure Propane.


This hose will remain flexible in cold weather.  MADE IN USA

Free shipping to the 48 contiguous U.S. States.

Custom made lengths available by request. Minimum hose length is 24".


For Pricing, call at 713.222.0077

Or email at info@tejassmokers.com





  100GH521   - 1 1/2" ID Natural Gas or Low Pressure Propane Generator Hose

  100GH521

1 1/2" ID x Custom Length, with 1 1/2" MNPT fixed x 1 1/2" MNPT swivel fittings.


1/2 PSI MAX. Hose can be used with Natural gas or Low Pressure Propane.


This hose will remain flexible in cold weather.  MADE IN USA

Free shipping to the 48 contiguous U.S. States.

Custom made lengths available by request. Minimum hose length is 24".


For Pricing, call at 713.222.0077

Or email at info@tejassmokers.com





  100GH624   - 1 1/2" ID Natural Gas or Low Pressure Propane with Stainless Steel Overbraid Generator Hose

  100GH624

1 1/2" ID x Custom Length, with 1 1/2" MNPT fixed x 1 1/2" MNPT swivel fittings,
with Stainless Steel Overbraid and high-temperature poly-jacketing.


1/2 PSI MAX. Hose can be used with Natural gas or Low Pressure Propane.



This hose will remain flexible in cold weather.  MADE IN USA

Free shipping to the 48 contiguous U.S. States.

Custom made lengths available by request. Minimum hose length is 24".


For Pricing, call at 713.222.0077

Or email at info@tejassmokers.com





  100GH522   - 2" ID Natural Gas or Low Pressure Propane Generator Hose

  100GH522

2" ID x Custom Length, with 2" MNPT fixed x 2" MNPT swivel fittings.

1/2 PSI MAX. Hose can be used with Natural gas or Low Pressure Propane.


This hose will remain flexible in cold weather.  MADE IN USA

Free shipping to the 48 contiguous U.S. States.


Custom made lengths available by request. Minimum hose length is 24".


For Pricing, call at 713.222.0077

Or email at info@tejassmokers.com





  100GH625   - 2" ID Natural Gas or Low Pressure Propane with Stainless Steel Overbraid Generator Hose

  100GH615

2" ID x Custom Length, with 2" Male NPT fixed x 2" Male NPT swivel fittings,
with Stainless Steel Overbraid and high-temperature poly-jacketing.


1/2 PSI MAX. Hose can be used with Natural gas or Low Pressure Propane.


This hose will remain flexible in cold weather. MADE IN USA

Free shipping to the 48 contiguous U.S. States.

Custom made lengths available by request. Minimum hose length is 24".


For Pricing, call at 713.222.0077

Or email at info@tejassmokers.com





Generator Hose Size

  -

Watts HP 5' 10' 15' 20' 25' 30' 35' 40' 45' 50' 75' 100'
1850 3.5 .5 .5 .5 .5 .5 .5 .5 .5 .5 .5 .5 .5
2500 5 .5 .5 .5 .5 .5 .5 .5 .5 .5 .5 .75 .75
3500 6 .5 .5 .5 .5 .5 .5 .5 .75 .75 .75 .75 .75
4000 8 .5 .5 .5 .5 .5 .75 .75 .75 .75 .75 1.0 1.0
5000 10 .5 .5 .75 .75 .75 .75 .75 .75 .75 1.0 1.0 1.0
6500 12 .75 .75 .75 .75 .75 .75 .75 .75 1.0 1.0 1.0 1.0
7000 13 .75 .75 .75 .75 .75 .75 .75 1.0 1.0 1.0 1.0 1.0
7500 15.5 .75 .75 .75 .75 .75 .75 .75 1.0 1.0 1.0 1.0 1.0
8000 16 .75 .75 .75 .75 .75 .75 .75 1.0 1.0 1.0 1.0 1.25
10 KW 20 .75 .75 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.25 1.25 1.25
12 KW 24 .75 .75 1.0 1.0 1.0 1.0 1.0 1.0 1.25 1.25 1.25 1.25

Use the above chart to choose the appropriate hose size for your generator





Custom Length Generator Gas Hoses MADE IN USA


► Custom manufactured lengths of strip wound or strip wound with stainless steel overbraid connector hoses sizes 3/8", 1/2", 3/4"             can be supplied with a male quick disconnect plug and/or male NPT swivels on both ends of the hose.


► Sizes 1", 1 1/4", 1 1/2", and 2" ID hoses are supplied with male National Pipe Taper thread swivels on both ends. These hoses are for natural gas or propane, absolute highest quality and safest generator connector and construction heater hoses available.
Call 713-222-0077 for pricing.
