Natural Gas Connector Hoses and Quick Disconnect Fittings

  • Rated up to 5 psi for Natural Gas OR Low Pressure Propane.
  • Choose either a Sturgis-brand strip wound OR a stainless steel overbraid flexible hose (rated to 60 psi). These U.S.-made hoses remain flexible in cold weather, unlike most other hoses.
  • The stainless steel overbraid gas hose is almost squirrel and rodent proof
  • These ANSI Z21.54 coupling hose connectors are engineered and manufactured to the highest specifications in the industry by M.B. Sturgis who uses only UL- certified steel in the inner core and domestic CA360 brass on the milled-end fittings in order to exceed all CSA connector certifications.
  • All assemblies are 100% leak tested with pure nitrogen.
  • These hoses and parts are not interchangeable with Snap Tite couplers. They ARE compatible with the popular Hansen & Sturgis-brand Couple-Safe couplers and the Gas Flo brand fittings.
  • These are the absolute highest quality and safest generator connector hoses and propane hose fittings made anywhere.
  • Shipping is free within the 48 contiguous US states.



 100LP484  - Natural Gas Appliance Hose 3/8" ID

  100LP484

100LP484 - Strip wound hose 3/8"ID, with 3/8" CSN (M) plug x 3/8" (F) SAE (gas flare) swivel fitting. 5 psi max.


This natural gas hose can also be used with low pressure propane. Other custom made lengths available upon request. Requires an optional female socket below. Remember hose sizes are NOT measured by the outside diameter of the hose


For Custom length 3/8"ID low pressure (natural gas or propane) hoses call. 713.222.0077.


  Weights:
  6 ft.  1 # 10 oz.
10 ft.  2 # 13 oz.
12 ft.  2 # 14 oz.
15 ft.  3 # 11 oz.
20ft.   4#    5 oz.


Free shipping within the 48 contiguous U.S. States.


CSA Descriptive Test Report for Model 375 (3/8”ID) Quick Disconnect Fittings

CSA Supplemental Certificate of Compliance for Quick Disconnect Fittings

CSA Certificate of Compliance for Model 375 (3/8” ID) Gas Accessory Devices




$34.95

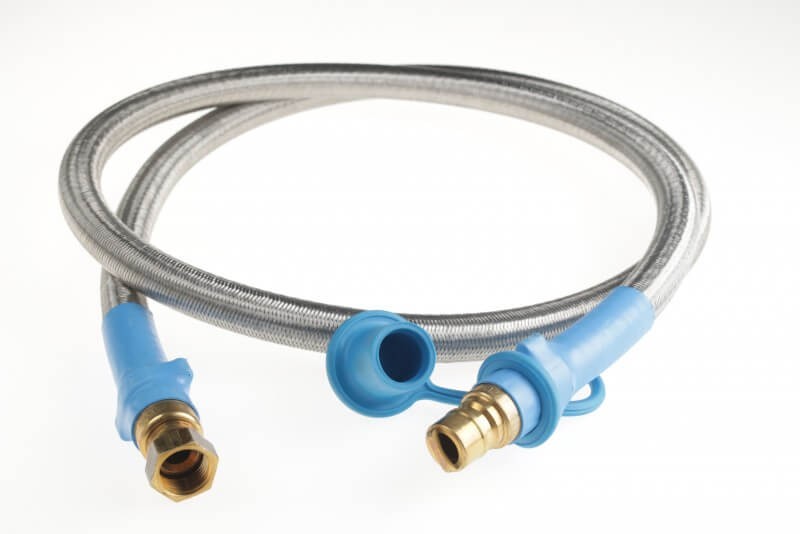

 100LP462  - Natural Gas Appliance Hose 3/8" ID with Stainless Steel Overbraid

  100LP462

100LP462 - Strip wound hose 3/8"ID, with stainless steel overbraid and high temperature poly-jacketing, with 3/8" (M) plug x 3/8" (F) SAE (gas flare) swivel fitting. 5 psi max.


This natural gas hose can also be used with low pressure propane. This is the highest quality low pressure gas hose available. Other custom made lengths available upon request. Stainless Steel overbraid makes this gas hose almost squirrel-proof. Requires an optional female socket below.


Remember that hose sizes are NOT measured by the outside diameter of the hose.


Free shipping within the 48 contiguous U.S. States.


     Weights:
  6 ft.  2#   2 oz.

10 ft.  2#   4 oz.
12 ft.  3# 14 oz.
15 ft.  4#   2 oz.
20 ft.  5#   0 oz.



$58.95





 104MB001  - 3/8"ID Quick Disconnect Female Socket x 3/8" Female NPT

  104MB001

104MB001 - Model 375 CSN 3/8"ID quick disconnect female Socket x 3/8" (F) NPT. 0.5 psi max.


Can also be used with low pressure propane. Thermo sleeve safety feature disengages the plug when the temperature exceeds 450 ยบF. CSA Certified to ANSI Z21.41 / CAN 6.9.


Wt. 6 oz. Free shipping within the 48 contiguous U.S. States.

$24.95





 104BF007  - Quick Disconnect Female Socket with Integral Ball Valve x 3/8" F NPT

  104BF007

104BF007 - Model 375 CSN 3/8"ID female disconnect Socket x 3/8" (F) NPT, includes 3/375 integral ball valve and a thermal shut off x 3/8" (F) NPT. 25 psi max.


Can also be used with low pressure propane. Thermo sleeve safety feature disengages the plug when the temperature exceeds 450 ยบF. CSA Certified to ANSI Z21.41 / CAN 6.9


Wt. 8.2 oz. Free shipping within the 48 contiguous U.S. States.

$39.95





  375QDDP   - Dust Plug for 3/8"ID Model 375 Quick Disconnect Female Sockets

  375QDDP

375QDDP - Dust Plug for 3/8"ID Model 375 quick disconnect female sockets.


The outside diameter of the dust plug insert is approx 1/2". Colors of the dust plug may vary. If you are purchasing the QD female socket listed above, there is no need to purchase an additional dust plug. One is already included with the brass female socket and will be shipped with the order.


These dust plugs will NOT fit any Quick Disconnects on RVs.
This item is not eligible for return or exchange.

Free shipping within the 48 contiguous U.S. States.


$6.95





  401BF207   - Model 375 CSN QD Plug x 3/8" Female NPT, for 3/8 ID gas hose

  401BF207

401BF207 - 3/8"ID Model 375 CSN Quick Disconnect Plug x 3/8" (F) NPT. For 3/8 ID gas hose


Can also be used with low pressure propane.


Wt. 1.2 oz. Free shipping within the 48 contiguous U.S. States.


  • QD Plug x 3/8in Female NPT, for 3/8 ID gas hose
  • QD Plug x 3/8in Female NPT, for 3/8 ID gas hose
  • QD Plug x 3/8in Female NPT, for 3/8 ID gas hose

$12.95





  375QDDC   - Dust Cap for 3/8"ID Model 375 for Quick Disconnect Male Plugs

  375QDDC

375QDDC - Dust Cap for 3/8"ID Model 375 quick disconnect male plugs.


The outside diameter of the dust cap cover is approx 1/2". Colors of the dust cap cover may vary. If you are purchasing a QD male plug fitting listed above, there is no need to purchase an additional dust cap cover since one is already included with the brass male plug. It will be shipped with the order.


These dust caps will NOT fit any Quick Disconnects on RVs.
This item is not eligible for return or exchange.


Free shipping within the 48 contiguous U.S. States.


$6.95





  NGO3BOX   - Stainless Steel Gas Outlet Cover Box

  NGO3BOX

NGO3BOX - Stainless Steel Gas Outlet Cover Box for 3/8" Ball Valve Socket.


Install a 3/8"ID Ball Valve Socket (104007) facing down and then screw this cover box over it. Flip the lid up to access the ball valve and socket. Hole drilled at right side of cover opening to permit use of a small safety lock. Installation is simple. Purchase the #104007 Ball Valve Socketseparately.


Will not work with the larger 1/2"ID # 104023 ball valve socket.


6.25"H x 3.5"W x 2.75"D, Wt. 13 oz. Free shipping to the 48 contiguous U.S. States


  • Stainless Steel Ball Valve Cover Box
  • Stainless Steel Ball Valve Cover Box
  • Stainless Steel Ball Valve Cover Box

$50.00





NYC - New York City 3/8" Gas Convenience Outlet Kit

  NYC

NYC - New York City 3/8" Gas Convenience Outlet Kit.


New York City MEA Approved Gas Convenience Outlet Vault used for quick connecting outdoor appliances to gas lines permanently placed in an open area sidewalk or patio. Provides a flush surface when not in use and a 1/2" high domed lid when powering an outdoor appliance.


High temperature shut-off device, 3/8" thick cast aluminum, CSA Certified, Approved for Indoors & Outdoors, Low Pressure Propane or Natural Gas.


It includes (2) 3/8" thick cast aluminum lids, 3/8" Quick Disconnect Female Ball Valve Socket, and a 3/8" ID Stainless Steel Overbraid Hose (8ft long) with one side of the hose 3/8" Male Quick Disconnect Plug and the other side 3/8" Male NPT swivel.


Free shipping within the 48 contiguous U.S. States.


Cut Sheet of Commercial Gas Outlet with Flush Lid

Cut Sheet fo Commercial Gas Outlet with Dome Lid / Hose Attached to QD

GCO Drawing of a Ground Installation


  • 3/8in Cast Aluminum Outlet Kit 3/8in ID x 8ft Hose Included

    3/8" Cast Aluminum Outlet Kit

  • 3/8in Cast Aluminum Outlet Kit 3/8in ID x 8ft Hose Included

    Back Side of Outlet Vault and Lids

3/8" ID x 8ft Hose Included

  • 3/8in Cast Aluminum Outlet Kit 3/8in ID x 8ft Hose Included

    Outlet Kit connected to
    an outdoor heater

  • 3/8in Cast Aluminum Outlet Kit 3/8in ID x 8ft Hose Included

    3/8" Cast Aluminum Outlet Kit

$299.95





  100LP358   - Natural Gas Appliance Hose 1/2" ID Strip Wound Hose

  100LP358

100LP358 - 1/2"ID strip wound hose with Model 4 male plug x 1/2" (F) SAE (gas flare) swivel fitting. 5 psi max.


This natural gas hose can also be used with low pressure propane. Other custom made lengths available by request. Requires optional socket below. Remember that hose sizes are NOT measured by the outside diameter of the hose.


For Custom length 1/2"ID low pressure natural gas or propane hoses call. 713.222.0077.


  Weights:

  8 ft. 2 # 13 oz.

12 ft. 3 # 11 oz.

15 ft. 4 #   9 oz.

20 ft. 6 #   0 oz.


Free shipping within the 48 contiguous U.S. States


CSA Test Report for Model 4 Connectors

CSA Certificate of Compliance

CSA Certification Record

CSA Certification Record




$49.95





Custom Length GENERATOR CONNECTOR and CONSTRUCTION HEATER HOSE

Custom manufactured lengths of strip wound or strip wound connector hose with stainless steel overbraid for hose sizes 3/8", 1/2", 3/4"  can be supplied with a male quick connect plug or male NPT swivel on either end of the hose. Quick Connect plugs and sockets with female NPT threaded connectors are used with 1" ID, 1 1/4" ID, 1 1/2" ID, and 2" ID natural gas hoses. These are available by special order. Call 713 222 0077 for information.



Sizes 1", 1 1/4", 1 1/2", and 2" ID, are supplied with male normal pipe thread swivels on each end.  These hoses are rated up to 5 psi natural gas or propane in strip wound and to 100 psi in the stainless steel overbraid version.  These are the absolute highest quality and safest generator connector, propane hose fittings, and construction heater hoses available.  Call 713-222-0077 for pricing which includes free shipping to New York, New Jersey, Massachusetts, Washington, Oregon, California and all 48 contiguous U.S. States.
